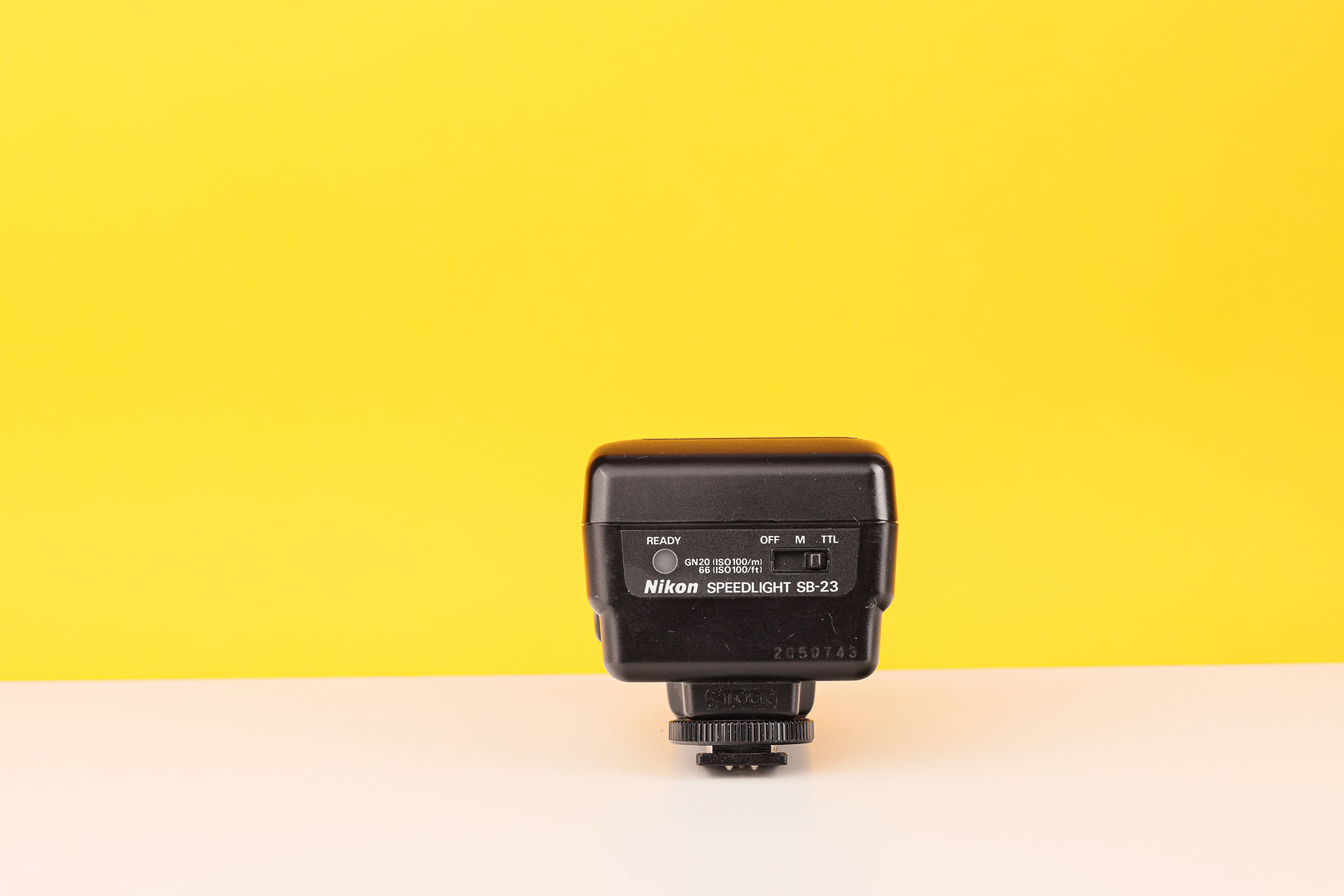

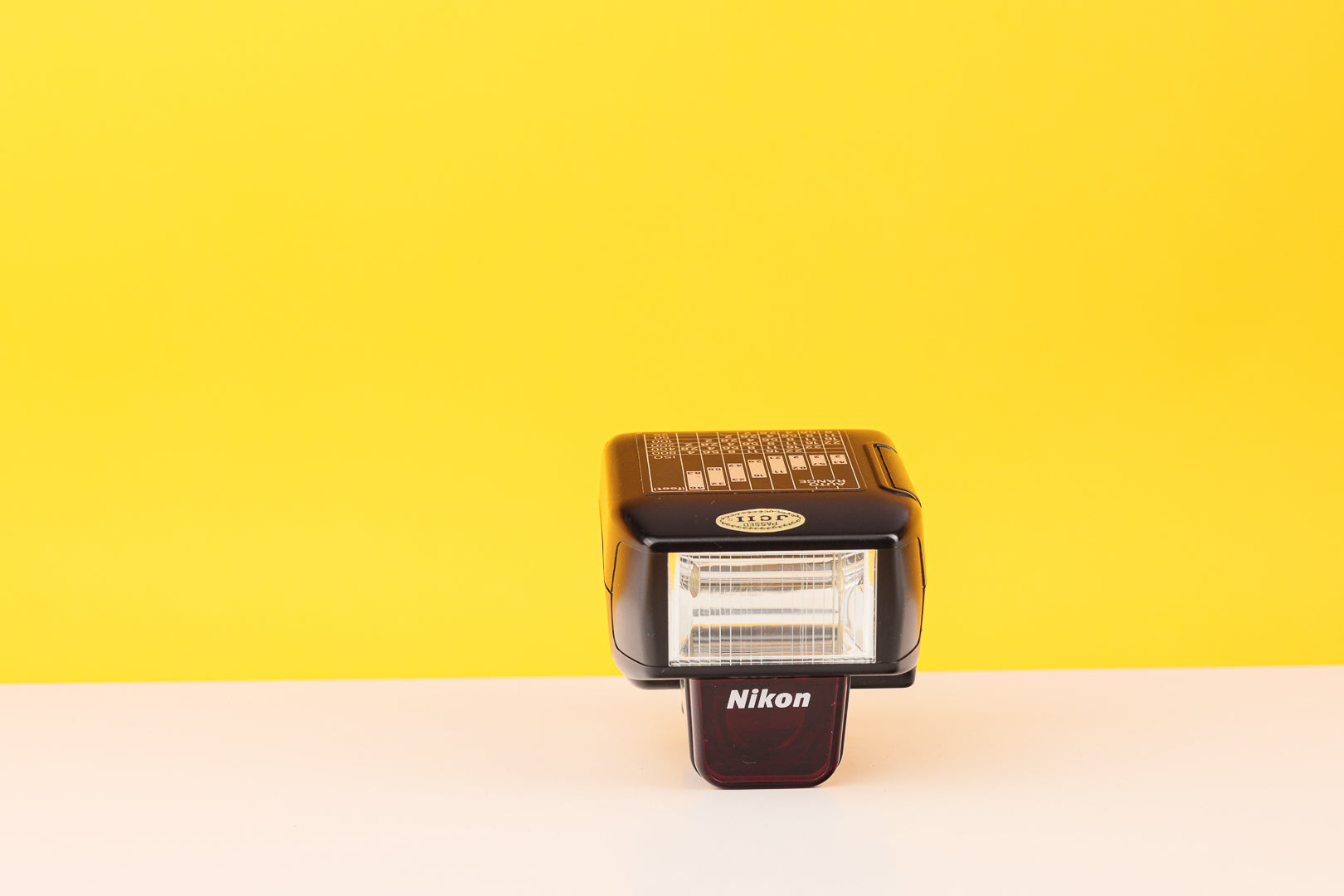

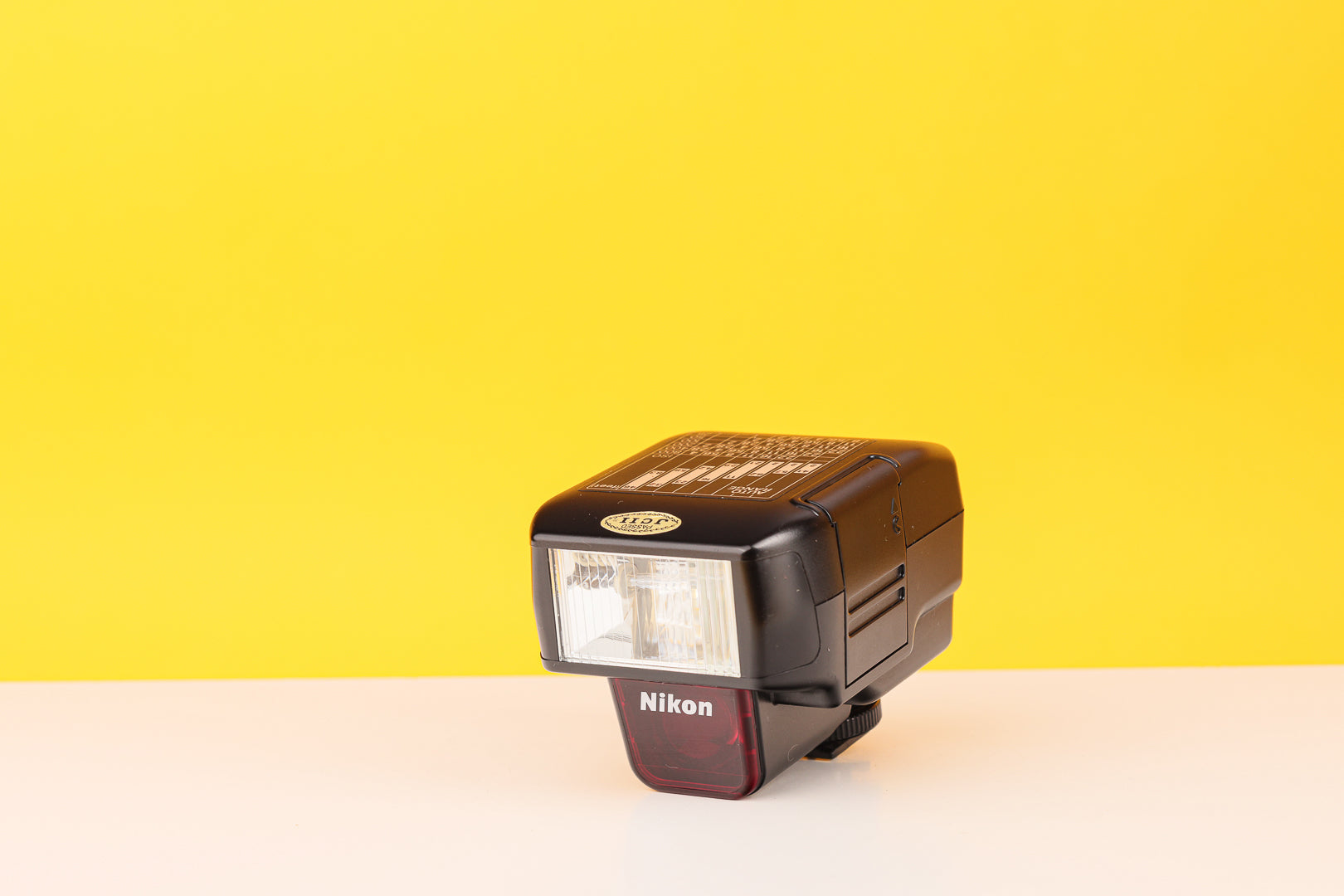

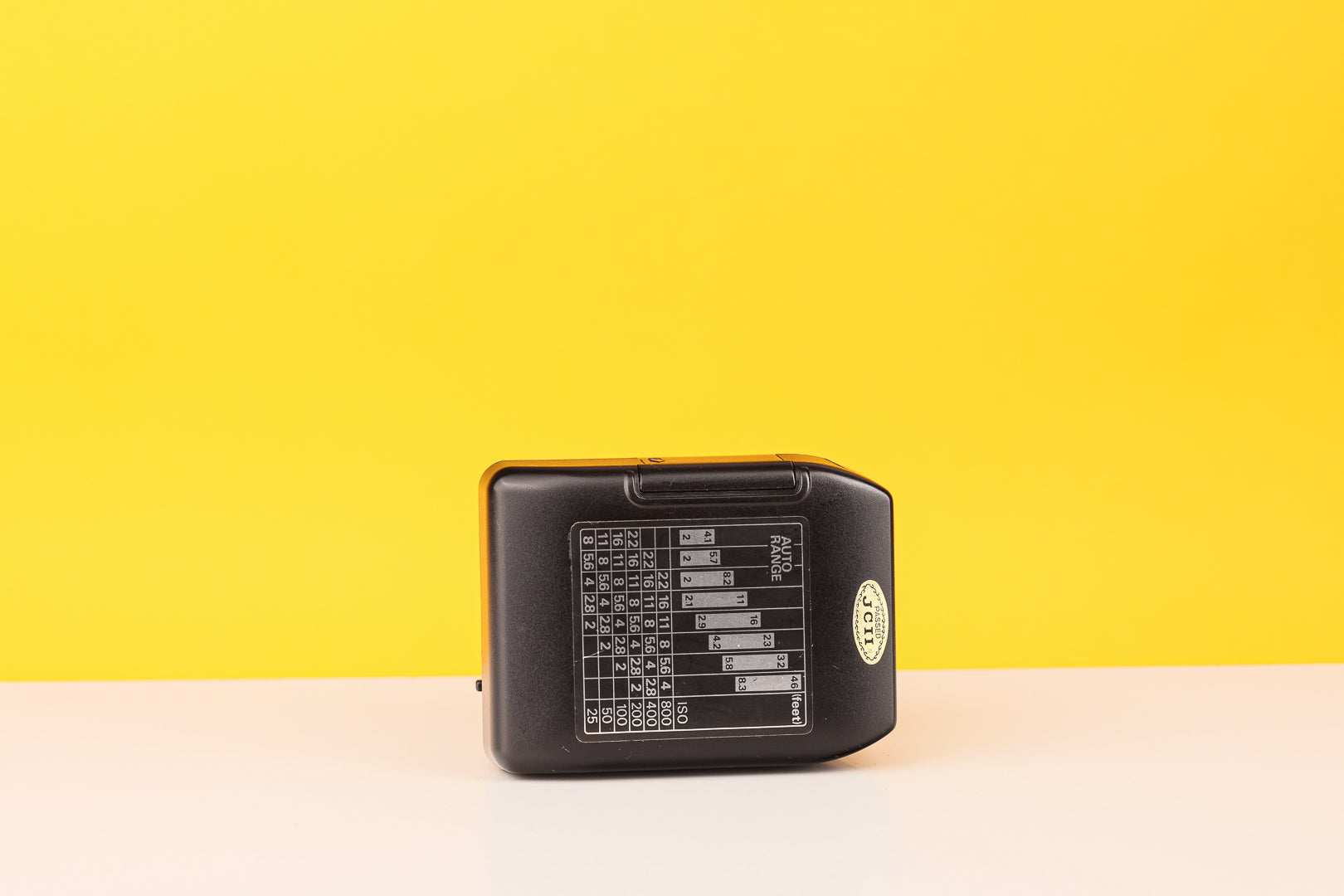

Nikon Speedlight SB-23 Flash

Tested and fully functional: Nikon Speedlight SB-23 Flash

Introduced in 1988, Nikon SB-23 is a lovely, extraordinary compact TTL Speedlight unit. It is highly portable and despite its compactness and lightweight (weighs merely 140g), it has a great compatibility with many Nikon AF SLRs with its AF-assist illumination. It is also usable as an companion flash for Multi-Sensor Balanced Fill-Flash with the later Nikon AF cameras such as F5, F100, F90x, F85, PRONEA 600i or F70 etc. with any AF-Nikkor CPU lens. With F4-series, F-801s, F-601, F50 or F-401x and a CPU lense , it synchronizes well to be used as a dedicated Speedlight for Matrix Balanced Fill-Flash.

The SB-23 has been listed in Nikon product listing for quite a long time (even when the Nikon F5 was introduced, it was still available). The tiny flash is the most compact among all Nikon AF TTL speedlights prior to 3.2 oz Nikon ultra-compact Nikon AF-TTL SB-30 Speedlight that introduced in 2002/3. It is a very handy flash as secondary flash unit in a multiple flash setup and/or syncro-sunlight fill flash. Other than TTL auto, it can still be used in manual flash control.

Technical specs:

Electronic construction: Automatic silicon-controlled rectifier and series circuitry
Flash exposure control: TTL automatic control with Nikon F5, F100, F80 series, Nikon F4-series, F90x, F-801s, F70, F-601s, F501, F-401x with any AF-Nikkor CPU** lense. Multi-Sensor Balanced Fill-Flash with the later Nikon AF cameras such as Nikon F5, F100, F90x, F85, PRONEA 600i or F70 etc. with any AF-Nikkor CPU lense * NOTE: 3D Multi-sensors Matrix flash metering is not possible. * "CPU" lenses refer to those AF Nikkor, AF-I Nikkor, IX-Nikkor or Ai-P Nikkor lenses which feature a built-in microcomputer and CPU contacts. ** With F4-series, Manual Focus Ai-S or Ai Nikkor lenses are also usable.
Manual control: full output
Guide number (ISO 100, in): 20
Angle of coverage: 60° horizontal and 45° vertical
Film speed range in TTL auto flash mode: ISO 25 to 1000 with Nikon F4-series, F90x, F-801s, F70, F-601s, F50 or F-401x
Recycling time: Approx. 2 sec.
Number of flashes: Approx. 400
AF-Assist Illuminator: Automatically fires LED beam toward subject when performing autofocus with any Nikon AF SLRs which includes older series of Nikon SLRs such as Nikon F4-series, F90x, F-801s, F70, F-601s, F50 or F-401x in insufficient light
Power source: Four 1.5V AA-type alkaline or NiCd batteries
Dimensions (without mounting foot): Approx. 64mm (W) x 67mm (H) x 84mm (D)

Pictures for every product that you see are our own photos but It's not without exception that some are the actual pictures of the item. Due to the utter amount of different items we're unable to photograph them one by one.

With this being said the pictures you see here are only indicative of the item you will receive

If you need more details please feel free to contact us.
